KUSAM-MECO clamp meters and digital multimeters

Kusam Electrical Industries has introduced a new range of KUSAMMECO range of clamp meters and digital multimeters with added features. These include:

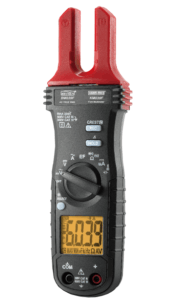

TRMS digital fork clamp meter Model KM 039

KUSAM-MECO presents its latest offering of fork clamp meter with only 12mm slim probe open jaws for easy slide into tight wiring. Features include: 6,000 counts display dual sensitivities EF-detection, 12.5mm ACA fork clamp, backlight LCD display, fully body, crest, Max Min, INRUSH currents, (5milli seconds) innovative Beeplit Diode test, records Max/Min reading over time, automatic APO disable feature, relative zero for convenient reading comparison, data hold, AC voltage (LPF), DC voltage, capacitance, resistance, temperature (TypeK-Thermocouple), DCmA for HVAC flame sensors testing, BeepLit Continuity Test, non-contact EFdetection (NCV) with Hi/Lo selectable sensitivities, and direct LPF/ACV and LPF Hz for VFDS (signals upto 600V).

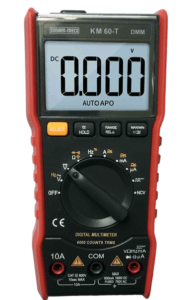

TRMS digital multimeter Model KM 60-T

The new TRMS digital multimeter ModelKM 60-T is a 6,000 counts multimeter having 12 functions and 39 ranges. It has a large backlight display. It measures TRMS AC voltage upto 750V and AC current upto 10Amps. It has function of DC voltage upto 1,000V and DC current upto 10A. It can also measure frequency upto 10 MHz. The resistance range is upto 40 M Ohms. Additionally, it measures capacitance upto 9.999 mF. It also has Diode & Continuity TEST. Other features include non-contact voltage detection and pulse output. It also has data hold and MAX/MIN and Rel Zero function. For taking measurement in dark places, it is equipped with a flash light. To conserve power, the instrument will be deactivated if there is no input signal for about 15 minutes. Over range is displayed by ‘OL’. It is lightweight (approximately 250g including battery). It is supplied with high quality test lead, battery and user manual with one year warranty.

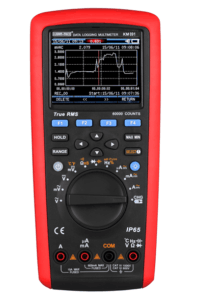

TRMS digital multimeter Model KM 891with data logging & PC interface

KUSAM-MECO has introduced the most advanced TRMS digital multimeter Model KM 891 having 60,000 counts with data logging function and PC interface. It has 21 functions and 63 ranges. This new digital multimeter has 21 functions packed in one instrument so that the user does not have to carry many instruments. The basic DC voltage accuracy is 0.03 percent. The instrument is water proof and dust proof with IP 65 rating. It has safety compliance CAT III 1000V & CAT IV 600V. It can capture trends and data record/ read back 20,000 records. For the safety of the instrument and the user in case of wrong test lead input, the instrument gives alarm and buzzer to warn the user.

It also has date and time function. It has measuring functions AC current, AC + DC current, AC voltage, AC + DC voltage, DC current, resistance, capacitance, frequency, temperature measurement function. A very special function in the instrument is conductance measurement. Additionally, it has the function of duty cycle, diode test, continuity test and pulse width. To conserve the battery power, the meter will switch off if any switch or button is not operated for 15 minutes. It can also display maximum, minimum and relative value. Peak detection of the input value is also available in this instrument. It also has the function of Data Hold, Comparison instrument. It complies with safety standards IEC/EN 61010-1, EN6101-2-30 and pollution degree 2.The functions are displayed on the LCD screen graphically. Optional, facility of bluetooth is available.

A software CD & USB cable is supplied along with the instrument, in addition to a pair of test leads. Two K-type thermocouple probe, one temperature connector, carrying case andoperational manual are also supplied.

—

For more details contact:
Kusam Electrical Industries Ltd
G-17, Bharat Industrial Estate, T J Road,
Sewree (W), Mumbai – 400015
Tel: 022- 24156638, 27754546, 27750662,
24124540, 24181649
Email: sales@kusam-meco.co.in
Website: www.kusamelectrical.com
